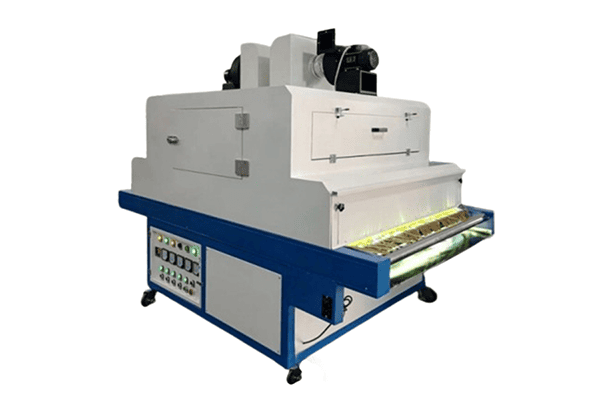

High-efficiency intelligent UV transmission and curing machine
Resiners Intelligent UV Transmission Curing Machine is a transport UV curing device designed for rapid curing of electronic and plastic parts. Built-in 6 12KW high-power UVA365nm mercury lamps, and the high-throughput, continuous surface coating, adhesive, UV ink and structural adhesive are quickly cured through a 900 mm wide conveyor belt and an adjustable speed of 0–5 m/min.
Technical parameters
· Product name: PCB circuit board UV curing machine
· Wavelength range: UVA365nm mercury lamp
·Light tube power: 12 KW × 6
· Equipment size: 3000 × 1500 × 2500 mm
Conveyor belt width: 900 mm
· Conveyment speed: 0–5 m/min (adjustable)
· Cooling method: air-cooled
· Control system: Touch screen + PLC programmable control, with temperature monitoring and fault alarm
Core functions and features
Intelligent control
• PLC+ touch screen integrated operation interface, multi-contact display, real-time monitoring of temperature, speed and lamp status;
• Self-diagnosis and alarm functions of faults to ensure continuous and stable production.
Efficient curing
• 365 nm high-density ultraviolet irradiation, thoroughly cured without dead corners;
• The conveyor lines are reasonably laid out, and the curing area can be controlled in segments to accurately match different process requirements.
Stable and durable
• Strong transmission motor and high-quality conveying mesh belt, high temperature and wear resistance, long-term and stable operation;
• Air-cooled cooling system efficiently takes away the residual heat of the lamp tube and extends the service life of the equipment.
Applicable in multiple scenarios
• Mobile phone case, buttons and PE plastic case UV oil coating and curing;
• Optical film, OCA adhesive layer, LCD/LCM panel curing;
• PCB/PCBA, electronic components, terminal seals, precision hardware and medical components curing;
• New energy battery modules, high-voltage connectors, scientific research and experiments and other fields.
Application cases
· Gloss and dispensing curing on the UV surface of the mobile phone case: the beat is less than 30 s/piece, the pass rate is >99.5%;
· Optical film OCA glue layer curing: uniform and no drag, optical transmittance increases by 5%;
· PCB/PCBA top coated glue point curing: key device bonding glue is formed in one piece, without secondary rework.
