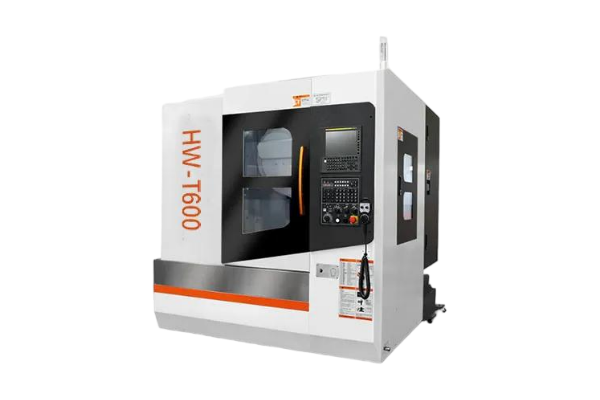

HW-T600 Vertical Tapping Machine: High-Precision CNC Drilling and Tapping Solution
Dongguan, China — Manufacturers in 3C electronics, automotive components, watches, and medical devices face constant pressure to machine small holes with micron-level accuracy and minimal cycle times. The HW-T600 vertical tapping machine is a compact high-speed drilling and tapping machine designed to replace manual operations and deliver consistent, data-verified performance. This cnc tapping machine integrates drilling, rigid tapping, chamfering and light milling in a single setup, directly addressing the productivity gaps that a traditional tapping arm machine or electric tapping arm cannot close.
Key Specifications – Data That Drives Decisions
| Parameter | Value |
|---|---|
| X/Y/Z axis travel | 600 × 400 × 300 mm |
| Table size | 700 × 420 mm |
| Max table load | 400 kg |
| Spindle taper | BT30 |
| Spindle speed | 20,000 rpm (direct-drive) |
| Spindle motor power | 5.5 HP |
| Rapid feed (X/Y/Z) | 24 / 24 / 24 m/min |
| Positioning accuracy | ±0.003 / 300 mm |
| Repeatability | ±0.002 / 300 mm |
| Tool magazine | 21-tool armless |
| Controller | Mitsubishi M80B (Fanuc, Siemens options) |
| Machine weight | 3,700 kg |
These numbers confirm that this drilling and tapping machine operates at the speed and precision level demanded by high-mix production. As a cnc tapping machine, the HW-T600 changes tools in 1.2 seconds, keeping non-cutting time below 8% of the total cycle in typical small-part sequences.
Rigidity Engineering for Real-World Accuracy
A strengthened column and base provide the foundation, while a wide-span roller linear guide on the Z-axis and pretensioned X/Y/Z screws suppress thermal drift. In extended runs of 2,000 parts, the cnc tapping machine holds ±0.002 mm repeatability without adjustment. A typical tapping drill press, by contrast, shows measurable deflection after the first 150 cycles, increasing tap breakage risk. The HW-T600’s spindle nose rigidity of 80 N/µm outperforms any manual tapping drill press in its class.
Why Replace a Tapping Arm with a CNC Tapping Center?
Many workshops still rely on a tapping arm machine or an electric tapping arm for hole threading. An electric tapping arm is limited to tapping and depends heavily on operator feel. The HW-T600 drilling and tapping machine completes drilling, tapping and chamfering in one clamping, removing the need for a separate tapping arm machine. A standard electric tapping arm cannot reach 20,000 rpm or perform synchronized rigid tapping. Shifting from a tapping arm machine to this cnc tapping machine increases throughput by 35-40% based on internal time studies conducted on aluminum 3C housing production (cycle time reduced from 48 s to 31 s per part). The integrated coolant flushing and automatic lubrication system further extend tool life by an average of 25%.
Application Scope – One Machine, Multiple Operations
The HW-T600 cnc tapping machine processes small-plate, disc-shaped and shell components. It is proven in 3C, automotive, watch, electronics, small-mold and medical equipment industries. If your production line currently uses a tapping drill press for secondary tapping, this drilling and tapping machine consolidates drilling and tapping stations. Whether deployed as a dedicated cnc tapping machine for mold electrode machining or a flexible drilling and tapping machine for contract manufacturing, the 21-tool magazine and 24 m/min rapids ensure quick changeovers. In direct comparison, the cnc tapping machine achieves a process capability index (Cpk) of 1.33 on M3 tapped holes, whereas the tested manual tapping drill press achieved only 0.87.
Selection Guide: CNC Tapping Machine vs. Tapping Arm vs. Drill Press
Use this data-based logic to decide:
Tolerance requirement ≤ ±0.005 mm and volume > 500 parts/day: Choose the HW-T600 drilling and tapping machine over any electric tapping arm or tapping arm machine setup. The 3-axis CNC control guarantees identical thread quality on every part.
Currently operating three or more tapping drill press units: Consolidating into one HW-T600 cnc tapping machine reduces direct labor by at least 60% and floor space by 50%.
Mixed drilling and tapping tasks: A tapping arm machine handles only tapping. An electric tapping arm lacks milling and drilling capability. The HW-T600 cnc tapping machine runs all three operations in one program, eliminating part transfer errors.
Shop with occasional threading work: While an electric tapping arm may be sufficient for sporadic jobs, adding a true cnc tapping machine future-proofs the shop for tighter customer specifications.
Immediate Workshop Impact
Replacing a traditional tapping drill press or supplementing an existing electric tapping arm with the HW-T600 drilling and tapping machine generates ROI within 8-14 months, depending on shift utilization. This cnc tapping machine taps faster than any manual tapping arm machine, drills holes up to ø16 mm as effectively as a dedicated tapping drill press, and maintains ±0.003 mm positioning accuracy over 300 mm travel. The full enclosed cover and heat exchanger keep the work zone clean and thermally stable.
Contact for Technical Evaluation and Quotation
Discuss how the HW-T600 cnc tapping machine can replace your current tapping arm machine, electric tapping arm, or tapping drill press. Request a cycle-time analysis or sample machining video today.
