Innovative Drop Tester Sets New Benchmark for Packaging Impact Testing
1. Product Overview

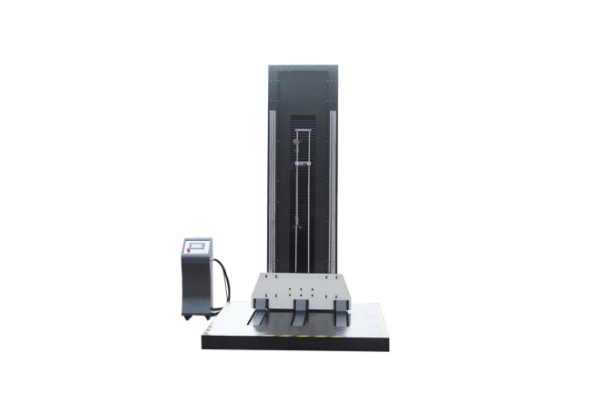

The Drop Tester from China is a Small single-wing double-arm carton drop test stand engineered to evaluate packaging durability and product impact resistance under ISO 2248, JIS Z0202-87 and GB/T 4857.5-92. This Drop testing machine ships in 15–30 days, with a supply capacity of 15 units per month, and simulates free-fall, angle and edge drops to identify weak points before distribution.
2. Technical Specifications
- Drop height: 500–1000 mm adjustable (±10 mm error)
- Specimen weight: 0–80 kg max
- Impact panel: 1700 × 1200 mm, Φ4 mm nickel-chromium wire
- Specimen size: up to 800 × 800 × 1000 mm
- Test bench: 1700 × 1200 × 2315 mm (L × W × H)
- Base plate thickness: 10 mm solid iron
- Net weight: ~300 kg
- Power: AC 380 V, 50 Hz, 1.85 kW
- Control mode: electric, 1 % drop-height error
- Angular error: ≤ 1° during fall
This Touch screen single-arm drop tester integrates digital encoders and PLC control for repeatable, programmable drop sequences, ensuring precision within 0.1 mm.
3. Key Features
- Programmable height sequences and step-stress testing
- Guided free-fall mechanism on low-friction linear bearings
- Continuous 360° specimen rotation for face, edge or corner impacts
- Quick-release clamps, T-slots and optional vacuum fixtures
- Real-time data logging with exportable test reports
The falling dart impact tester function reproduces high-impact corner tests on thin-wall cartons. As versatile Packaging carton free fall drop test equipment, it supports pallet fixtures, inclined surfaces and customized drop angles.
4. Application Scenarios
- Electronics: smartphones, batteries, chargers, adapters
- Consumer goods: small appliances, handheld devices
- Pharmaceuticals: vials, blister packs
- Logistics: certifying shipping cartons pre-dispatch
Adopting this Drop testing machine helps QA teams reduce transit damage, lower return rates and ensure compliance with global shipping protocols.
5. Customer Case Study
A leading smartphone OEM installed the Touch screen single-arm drop tester in its lab. After 500 consecutive drops at 600 mm, they recorded a 30 % drop in packaging failures. Use of this Small single-wing double-arm carton drop test stand cut annual damage costs by $120 000 and improved customer satisfaction scores by 18 %.
6. Ordering & Contact
For quotes on our falling dart impact tester or to book a demo of our Packaging carton free fall drop test equipment, contact:
Email: robertgao@highwingmold.com
WhatsApp: +86 139 2377 0845
Choose the Drop testing machine that delivers precise, data-driven packaging validation and peace of mind.
