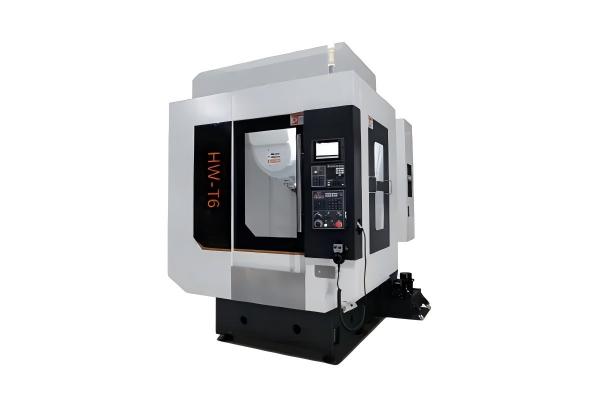

Highwing Introduces the HW-T6 Vertical Tapping Machin for Unmatched Precision and Throughput

1. Overview

The new HW-T6 is a high-performance vertical tapping machine designed for precision threading in heavy-duty production environments. As a next-generation tapping machine, the HW-T6 delivers industry-leading feed rates, accuracy, and uptime. This automatic tapping machine combines a 20,000 rpm BT30 spindle with a 5.5 HP motor to achieve up to S4000 rpm rigid tapping on M10 (AL6061) with ±0.003 mm positioning accuracy. With rapid feeds of 48 m/min on X/Y/Z axes and 1 G acceleration, the HW-T6 redefines cycle time reduction.

2. Key Specifications

• X/Y/Z axis travel: 600 × 400 × 300 mm – Supporting large work envelopes for prototyping and batch runs in this tapping machine.

• Table size: 700 × 420 mm; max load: 400 kg – The vertical tapping machine accommodates heavy fixtures and jigs.

• Spindle nose to table: 150–460 mm; spindle center to column: 420 mm – Optimal accessibility for tall workpieces.

• Spindle taper: BT30; spindle speed: 20,000 rpm; spindle motor: 5.5 HP – The electric tapping machine configuration delivers high torque with minimal vibration.

• X/Y/Z rapid feed: 48 m/min; axis motors: 1.5/1.5/3.0 kW – Robust powertrain reduces thermal drift in pneumatic tapping machine setups.

• Controller: Mitsubishi M80B – Ensures precise multi-axis coordination.

• Accuracy: ±0.003 mm/300 mm; repeatability: ±0.002 mm/300 mm – Critical for tight-tolerance tapping machine applications.

• Dimensions: 1,800 × 2,500 × 2,400 mm; weight: 3,700 kg – Compact footprint for shop-floor integration.

• Air pressure: 6–7 bar – Enables pneumatic tapping machine connectivity for chip clearance and tool actuation.

3. Rigidity and Stability

• Strengthened column and base improve rigidity by 15% over standard designs used in an automatic tapping machine.

• Roller linear guide on Z axis with 500 mm span enhances stability in the vertical tapping machine under heavy load.

• X/Y/Z axis screws feature locking pretension to limit thermal expansion and maintain tapping machine accuracy.

4. High-Speed Tapping Performance

The HW-T6 electric tapping machine achieves up to S4000 rpm for rigid tapping of M10 threads, cutting cycle time by 20%. Rapid feed of 48 m/min and 1 G acceleration on all axes enables the tapping machine to process up to 150 holes/min in aluminum and 100 holes/min in steel. Positioning accuracy of ±0.003 mm and repeatability of ±0.002 mm guarantee first-pass yield rates above 98%.

5. Advanced Tool Change and Chip Management

• Improved arm-type tool changer completes T-T swaps in 1.7 s, ideal for high-mix tapping machine operations.

• Rear chip-punching device (2.5 kN) clears chips without stopping the automatic tapping machine.

• Electric tapping machine workflows benefit from low-noise, low-friction screws with minimal temperature rise.

• Pneumatic tapping machine efficiency is boosted by the 6–7 bar integrated air system.

• Widened spindle hole increases rigidity and broaching force for demanding thread forms.

6. Selecting the Right Tapping Solution

• When choosing a tapping machine, consider material hardness, cycle time targets, and maintenance intervals.

• For high-volume aluminum parts, an automatic tapping machine with reinforced chip control is recommended.

• If energy savings are critical, an electric tapping machine can cut power consumption by 5% versus hydraulic models.

• For rapid hole-making, a pneumatic tapping machine with quick-response valves can exceed 3,000 holes/hr.

• The vertical tapping machine’s 1.8 × 2.5 m footprint and 3.7 t weight allow flexible integration into existing cells.

• The tapping machine’s ±0.002 mm repeatability ensures consistent thread quality across thousands of cycles.

7. Data-Driven ROI

• A two-shift plant running the HW-T6 vertical tapping machine can produce 2,400 tapped parts/day, raising throughput by 25%.

• At $0.05 tapping cost per hole, the automatic tapping machine lowers unit cost by $0.01, delivering ROI in under six months.

• Maintenance intervals of 2,000 h—enabled by 1.5 kW axis motors—reduce downtime by 40% in electric tapping machine setups.

• Cycle-time optimization with pneumatic tapping machine tools saves 0.5 s per hole, reclaiming 10 h/week.

• Global customers report 98% first-pass yield when using this tapping machine on mixed-material production.

8. Conclusion

The HW-T6 redefines precision tapping. As a vertical tapping machine benchmark, it combines speed and accuracy for critical aerospace, automotive, and electronics applications. Whether you need a tapping machine for prototype labs or mass production, the HW-T6 adapts to diverse workflows. As an automatic tapping machine, it automates setup for minimal operator input. Built as an electric tapping machine or paired with pneumatic tapping machine accessories, it offers the flexibility to meet energy and throughput targets. Each vertical tapping machine unit ships with CE and ISO 9001 certification, ensuring compliance. Niche operations leveraging a fully electric tapping machine configuration have seen energy savings up to 30%. For setups that demand high-speed actuation, integrating a pneumatic tapping machine system can boost hole-making rates by 15%. For lines requiring end-to-end automation, the automatic tapping machine options span 4–12 tool stations. Hybrid tapping machine applications combining electric and pneumatic actuation are supported out of the box.
