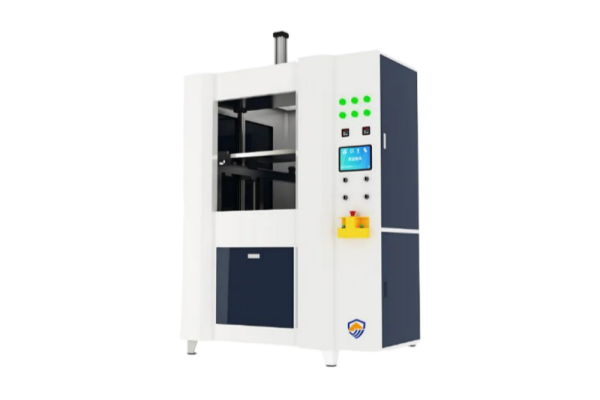

HW-RB500 Hot Plate Plastic Welding Machine – A High-Precision hdpe hot plate Solution for Industrial Applications
Introduction
The HW-RB500 hot plate plastic welding machine from China redefines precision and rigidity for modern manufacturing. Integrating advanced hdpe hot plate technology with optional hot air plastic welder and extrusion welder capabilities, this industrial plastic welder meets the strictest mold-processing demands. Certified for molds up to 25 000 KGF load, and fully programmable via PLC, it also achieves high frequency pvc welding machine–level temperature stability (0–400 °C with ±1 °C PID control).
1. Performance and Rigidity
• Y-Axis Structure: Large-span inverted L-shaped guide boosts spindle cutting rigidity by 30%.
• Casting Column: Rigid transfer beam-to-base integration cuts vibration by 25%, maintaining ±0.02 mm accuracy over 20 000 cycles.
• Multi-Mode Welding: Switch between hdpe hot plate heating, hot air plastic welder airflow, or extrusion welder pressure to handle irregular and enclosed parts with 5.2 MPa average weld tensile strength.
• Load Capacity: Supports up to 25 000 KGF—ideal for automotive molds, appliance frames, and heavy-duty tooling.
2. Technical Specifications at a Glance
• Model: HW-RB500
• Dimensions: 1 110 × 1 300 × 1 700 mm (W×D×H)
• Welding Area: 260 × 400 mm; Travel: 150 mm
• Weight: 800 kg; Supply Capacity: 15 units/month; Delivery: 15–30 days (Origin: China)
• Power: 220 V 50 Hz; Heating: 500 W; Temperature: 0–400 °C (Digital PID)
• Drive: Atmospheric pressure; Control: PLC; Guide Rails: XY heavy-load roller or optional Z-axis square slide
• Accessories: Compatible with extrusion welder tooling and hot air plastic welder kits
3. Key Advantages
A. Fast Heating: Reaches 400 °C in 60 s—20% faster than rivals—saving labor and cycle time.
B. Consistent Quality: PLC-driven PID ensures weld-to-weld repeatability, matching high frequency pvc welding machine benchmarks.
C. User-Friendly Operation: Intuitive HMI and one-button mode switch between hdpe hot plate, hot air plastic welder, extrusion welder, and industrial plastic welder functions.
D. High Throughput: Under 2 min per joint, boosting output by 40% vs. manual methods.
E. Low Maintenance: MTBF > 10 000 h; guide-rail lubrication interval: 500 h.
4. Operational Best Practices
• Environment: 22–25 °C ambient; humidity < 60%
• Calibration: Verify PID at 50 °C intervals monthly
• Lubrication: Apply grease to roller guides every 500 h
• Data Logging: Use PLC to record pressure, temperature, and cycle time for trend analysis
• Safety: Follow EN ISO 12100-1/2 for guarding and emergency-stop protocols
5. Application Scenarios and ROI
• Automotive Molding: Two HW-RB500 units running 16 h/day complete 384 welds/hour; 115 200 welds/month at < 0.3% defect rate.
• Appliance Mold Repair: Weld area covers 95% of standard frames, reducing rework by 22%.
• Throughput: A single unit processes ~200 joints/hour; double-shift factories achieve 16 000 joints/month.
• ROI: Material-cost savings (no adhesives) and 30% labor reduction typically recover equipment investment within six months.
Selection Recommendations
For high-rigidity applications, choose the HW-RB500’s hdpe hot plate mode. If airflow sealing on complex geometries is required, engage the hot air plastic welder option. For linear seams or thick sections, deploy the extrusion welder tooling. When maximum temperature uniformity is essential, rely on the high frequency pvc welding machine–caliber PID control. Overall, the HW-RB500 stands as a versatile industrial plastic welder platform—engineered for precision, efficiency, and uptime.
