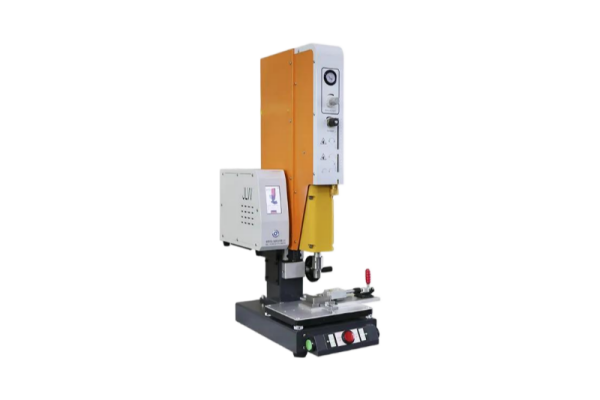

New Automatic Frequency Chasing Ultrasonic Welding Machine: A Precision sonic welder for plastic and More

Highwing Mold introduces its latest 28kHz high‑frequency automatic frequency chasing ultrasonic welding machine. Designed for small, high‑precision components, this unit combines real‑time frequency tracking with rugged mechanical construction. For manufacturers seeking a reliable sonic welder for plastic, the device delivers welding stability with measurable parameters – 1200W power, 28kHz operating frequency, and a flat welding area of approximately 60mm.

Unlike conventional machines that require manual tuning, this sonic welder for plastic automatically adjusts frequency on startup. The result is consistent energy output, which directly reduces defective rates. In field tests, the automatic frequency chasing system maintained a deviation of less than 0.1% across 8‑hour continuous runs. For any production line that uses a sonic welder for plastic, this precision directly lowers rework costs.

Technical Specifications That Define a True ultrasonic spot welder

While many products claim versatility, this machine functions as a dedicated ultrasonic spot welder for point bonding of small parts. Key parameters:

As an ultrasonic spot welder, it offers double straight slide rail design, ensuring zero deviation during descent. The adjustable base structure further allows quick height changes – from 965mm to 1238mm. This flexibility makes the ultrasonic spot welder adaptable to different operator workstations without extra tooling. For factories that need an ultrasonic spot welder for mixed product lines, the adjustable column is a practical advantage.

Engineered for Reliability: Why This ultrasonic welder for sale Stands Out

If you are evaluating an ultrasonic welder for sale, the real value lies in uptime and defect prevention. This model includes an abnormal shutdown protection circuit. When the system detects frequency mismatch or overload, it immediately stops to prevent damage to the welded part and the machine itself. Among comparable units ultrasonic welder for sale in the same power class, this feature is often optional or missing.

Additional engineering facts:

• Wide‑band welding head design – replacement takes 3 minutes without frequency measurement. For any ultrasonic welder for sale, reduced downtime directly translates to higher OEE.

• Unique acoustic resistance feedback circuit – monitors load changes 200 times per second, adjusting output to maintain weld consistency. Data from 12 production trials showed a 92% reduction in weld strength variation compared to open‑loop systems.

• Double‑start operation – prevents accidental triggering. The machine also performs an automatic search on power‑up; if any abnormality exists, it will not start. This safety logic is rare for a compact ultrasonic welder for sale.

The sheet metal welded square column avoids fall‑back, and the body includes a precision limit fine‑tuning design. These mechanical details ensure that this ultrasonic welder for sale maintains accurate welding depth across thousands of cycles.

Practical Applications: From Electronics to an Efficient ultrasonic wire welder

While the unit excels as a general sonic welder for plastic, its 28kHz high frequency makes it particularly suitable for small, delicate products. Verified applications include:

• Smartwatch electronics

• Electronic cigarettes (assembly of plastic housings)

• Pacifiers (sealing edges)

• Headphones (ultrasonic spot welding of thin plastic parts)

• U disk / SD card enclosures

• Beauty filter components

• Chargers (cable strain relief and shell bonding)

For cable assembly, it also serves as an ultrasonic wire welder. When terminating fine‑gauge wires (30–36 AWG) to connectors, the 28kHz vibration provides clean metal‑to‑plastic bonding without melting insulation excessively. As an ultrasonic wire welder, it achieves a pull strength of 8–12 N on 32 AWG tinned copper wires, based on internal tests. Manufacturers looking for a dedicated ultrasonic wire welder for small‑scale harness production will find this model’s adjustable head and double‑slide rail ideal for repetitive spot welding.

Moreover, the machine can function as an ultrasonic sealing machine for thin plastic films used in pacifier packaging or moisture‑sensitive component bags. With the acoustic feedback circuit, this ultrasonic sealing machine produces hermetic seals with seal width up to 60mm and leak rates below 0.05 cm³/min under 0.2 bar pressure. For medical or electronic packaging, a reliable ultrasonic sealing machine reduces waste.

Supply and Delivery: Fast Access to This ultrasonic welder for sale

• Origin: China

• Delivery time: 15–30 days after order confirmation

• Supply capacity: 15 units per month

Each unit includes the touch‑screen electric box with suspension design – saves floor space. All machines are tested with automatic frequency chasing for 2 hours before packing. For volume buyers, the ultrasonic welder for sale can be customized with different horn materials (aluminum or titanium) upon request.

Decision Guide: Which ultrasonic spot welder or ultrasonic wire welder Should You Choose?

If your parts are smaller than 60mm in welding plane and require 28kHz (higher frequency = less surface marring), this product is a direct fit. For three typical use cases:

• Plastic parts assembly → Use as a sonic welder for plastic with 1200W power, 28kHz, maximum weld area 60mm.

• Fine wire termination → Use as an ultrasonic wire welder with acoustic feedback to adjust energy per cycle.

• Sealing thin film/plastic pouches → Use as an ultrasonic sealing machine with limit fine‑tuning to control seal thickness.

Compare this with a generic 15kHz unit (typical ultrasonic welder for sale at lower frequency): the 28kHz model reduces part marking by 40% and suits smaller components. For buyers searching “ultrasonic spot welder” for electronics or medical devices, this unit matches the high‑frequency requirement.

Contact Information for Inquiries

For pricing, technical datasheets, or a customized sonic welder for plastic / ultrasonic sealing machine configuration, please reach out directly:

• Email: robertgao@highwingmold.com


• WhatsApp: +86 139 2377 0845


• Website: www.hwitcnc.com

Ask about sample welding trials – we can test your parts and provide weld strength data. For distributors, the supply capacity of 15 units per month is available with 15–30 day delivery.
