Launch of Advanced Xenon Lamp Aging Tester for Precision Material Durability Validation
Introduction

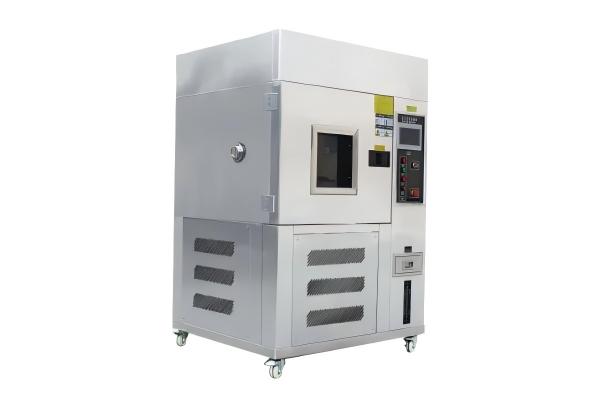

HighWing CNC proudly introduces its latest Xenon lamp aging test chamber, engineered in China to deliver rigorous, reproducible results for material endurance studies. As a leading Xenon lamp climate test chamber, this system leverages an air-cooled xenon arc source to lighting simulate sunlight with unmatched accuracy. The Weathering accelerated aging test machine supports RT+10℃ to 80℃ control and precise humidity cycling. The new Air-cooled xenon lamp aging light tester addresses critical user demands for accelerated UV, temperature, and rainfall stress in automotive, coating, rubber, plastic, cement, and textile applications.
1. Product Overview
• Construction: Exquisite paint-coated steel or stainless-steel exterior; SUS304 anti-corrosion mirror finish interior.
• Chamber Dimensions: 500 × 500 × 600 mm (W×D×H); Outer cabinet 810 × 1200 × 1800 mm.
• UV Source: 3 kW air-cooled xenon arc lamp in single-lamp configuration ideal for long-term operation.
• Control Platform: LCD touch screen with step-by-step programs simplifies operation of this Xenon lamp aging test chamber.
• Watering Module: Drawer-type refill tray and 0.8 mm nozzles with hyperfine filters support continuous and cyclic rainfall routines on this Xenon lamp climate test chamber.
2. Technical Specifications
• Temperature Range: RT + 10 °C to 80 °C, deviation ±3 °C, fluctuation ≤±2 °C.
• Humidity Control: +2% / –3% R.H. with programmable cycle periods from 1 to 240 minutes.
• Rainfall Settings: 1–9,999 minutes continuous or interval watering on this Weathering accelerated aging test machine.
• Irradiance: Borosilicate glass filter ensures consistent spectral output to lighting simulate sunlight at 0.55 W/m²@340 nm.
• Power & Safety: Air-cooled xenon arc source avoids water contamination; integrated over-temperature and leak detection on the Air-cooled xenon lamp aging light tester.
3. Key Features
• Smart Touch Interface: Preprogram up to 99 test protocols; real-time monitoring of temperature, humidity, and lamp status in the Xenon lamp aging test chamber.
• High Uniformity: Specimen carousel rotates at 3–5 RPM for ±8% spatial irradiance consistency in the Xenon lamp climate test chamber.
• Corrosion Resistance: SUS304 interior and anodized mirrors deliver 92% reflectivity across 300–800 nm for reliable lighting simulate sunlight cycles.
• Flexible Rainfall Control: Adjustable cycle and duration settings on the Weathering accelerated aging test machine to mimic outdoor precipitation patterns.
• Easy Maintenance: Modular lamp replacement and drawer-type water refill simplify upkeep of the Air-cooled xenon lamp aging light tester.
4. Application Scenarios
This Xenon lamp aging test chamber and Xenon lamp climate test chamber are ideal for:
• Automotive coatings, interior plastics, exterior trim validation
• Rubber seal and gasket UV endurance testing
• Textile colorfastness and fabric strength evaluation
• Cement and construction material weathering trials
• Aerospace composites aging analysis under accelerated lighting simulate sunlight
5. Why Choose This Equipment
• Proven Reliability: 15 units per month production capacity with 15–30 days lead time for the Xenon lamp aging test chamber.
• Data-Driven Validation: Deviation <±3 °C and humidity stability within ±3% R.H. ensure repeatable results in the Xenon lamp climate test chamber.
• Global Compliance: Meets ISO 11341 and ISO 105-B04 standards for UV exposure in a Weathering accelerated aging test machine.
• Expert Support: Dedicated service engineers for installation, calibration, and training on the Air-cooled xenon lamp aging light tester.
