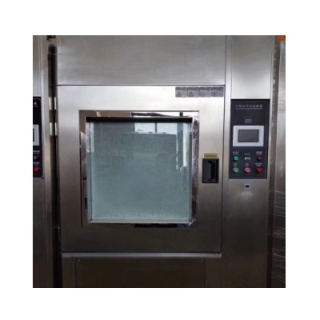

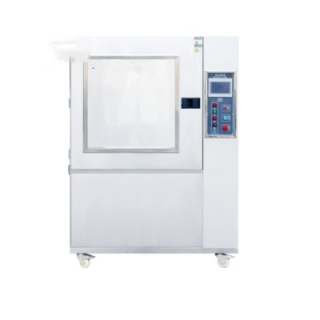

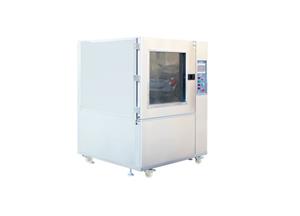

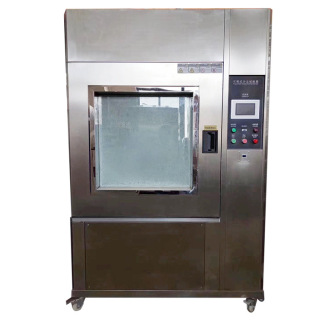

Dust test box
Applied for testing the sealing performance of the product shell, evaluating the exposure of auto parts/seals/lamps/meters to dry sand or dust soil environment, product resistance and storage and normal operation.
Technology Parameter
The nominal spacing of the metal mesh | 50um |
| Nominal spacing between lines | 70um |
| Dosage of talc powder | 2kg~4kg/m3 |
Percussion time | 0~9999M |
Fan cycle time | 0~9999M |
| Test piece power socket | Dustproof type socket AC220V 16A |
| Operation control system | Controller Microcomputer programmable logic controller |
Vacuum system | Equipped with pressure gauge, air filtration, pressure regulating triplet, connecting pipe |
| Circulating fan | Low noise type motor. Multi-blade centrifugal turbine |
Feature
I. Multi-Dimensional Contaminant Simulation System
The chamber employs triaxial particulate injection technology that transcends basic dust exposure:
• Variable Profile Dispersion: 8 programmable particle distribution modes (laminar flow, turbulent vortex, gravitational settlement)
• Intelligent Particle Sizing: Real-time laser diffraction monitoring (0.1–200µm range) with dynamic density compensation
• Electrostatic Charge Control: ±15kV adjustable tribocharging to simulate real-world particulate adhesion
• Thermal Cycling Integration: -70°C to +180°C conditioning during dust exposure
II. Military-Grade Environmental Replication
Certified test protocols exceed commercial standards:
Simulation Class
Technical Parameters
Compliance Standard
Desert Storm
15g/m³ @ 25m/s with 40°C thermal shock
MIL-STD-810H Method 510.7
Arctic Dust
Cryogenic (-55°C) fine particulate injection
DEF STAN 00-35 Lv. 3
Tropical Monsoon
98% RH + laterite soil cycling
ISO 20653 IP6XK
Mars Regolith
Fe₂O₃-rich simulant @ 9kPa pressure
ESA ECSS-Q-ST-70-04C
III. Cyber-Physical Monitoring Architecture
Real-time failure analytics through:
1. Optical Particle Counter (OPC)
◦ 0.3µm resolution contamination ingress mapping
2. Pressure Differential Scanning
◦ 500Pa/s leak detection sensitivity
3. Triboelectric Array
◦ 16-point surface charge accumulation tracking
4. AI-Predictive Failure Model
◦ Algorithms correlating dust penetration with 37 failure modes
IV. Automotive Validation Suite
Sector-specific testing modules:
• EV Battery Enclosure Validation:
◦ IP6K9K pressurized dust resistance (per ISO 20653)
◦ Thermal runway particulate containment scoring
• Headlight Optical Degradation:
◦ Lambertian reflectance loss measurement after silica exposure
• Seal Fatigue Accelerator:
◦ 20Hz micro-vibration during bentonite clay cycling
• Sensor False Trigger Analysis:
◦ Conductive graphene dust interference testing
