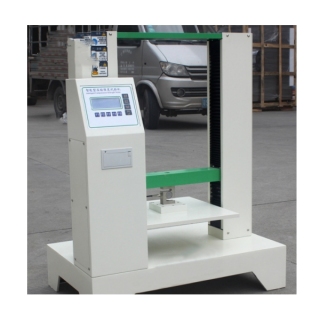

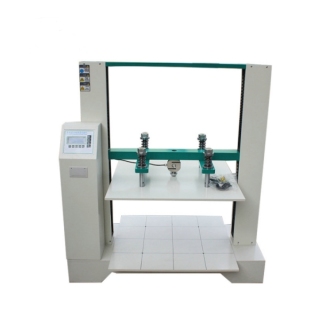

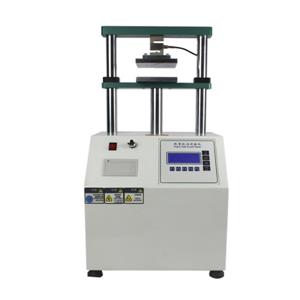

Box Compression Tester
It is suitable for paper tube with outer diameter of 200mm, also known as paper tube pressure testing machine and paper tube compression testing machine, is the basic instrument for testing the compressive performance of paper tubes, using high-precision sensors, high-speed processing chip design ensures sampling accuracy.
Technology parameter
Capacity selection | 500kg |
Paper tube outer diameter | 200mm |
| Test space | 150*150 |
| Test speed | 10~150mm/min |
Force resolution | 1/200000; |
Display resolution | 1N |
| Accuracy level | 1 |
| Displacement unit | mm, cm, in |
Power unit | kgf, gf, N, kN, lbf |
| Stress unit | MPa, kPa, kgf/cm², lbf/in² |
| Control mode | microcomputer control (optional computer operating system); |
| Display mode | electronic LCD display (optional computer display); |
| Software function | Chinese and English language interchange |
Feature

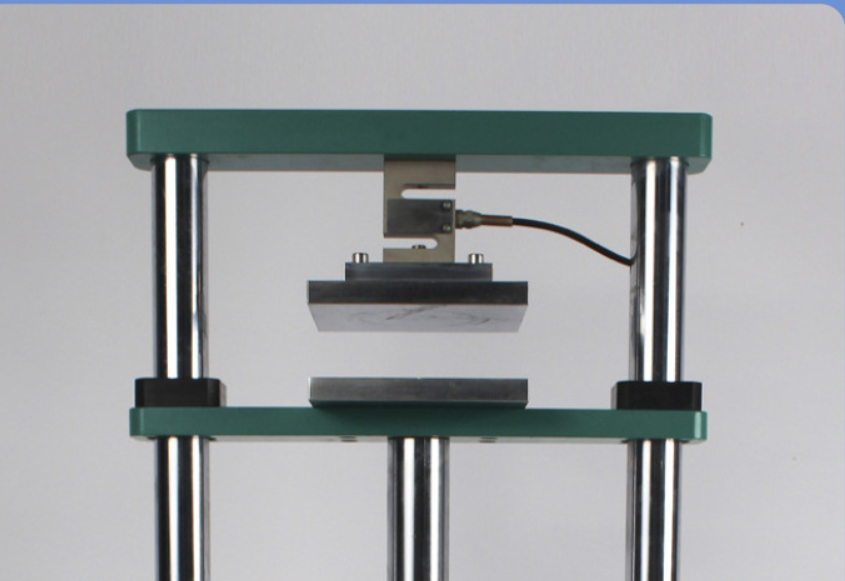

sensor
The use of high-precision sensors, high-speed processing chip design, to ensure sampling accuracy

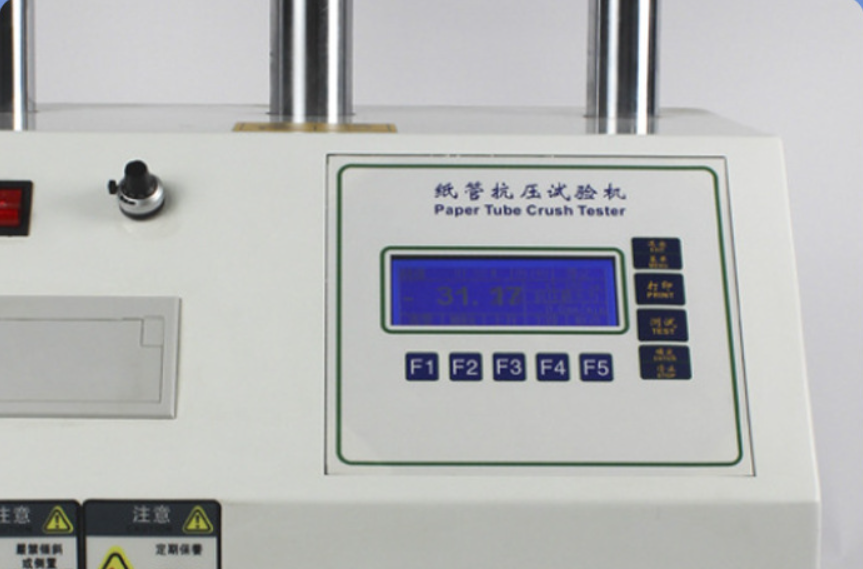

control panel
Smart LCD digital display, visually display the control panel,Adjustable speed, all Chinese LCD display operation interface, a variety of units to choose

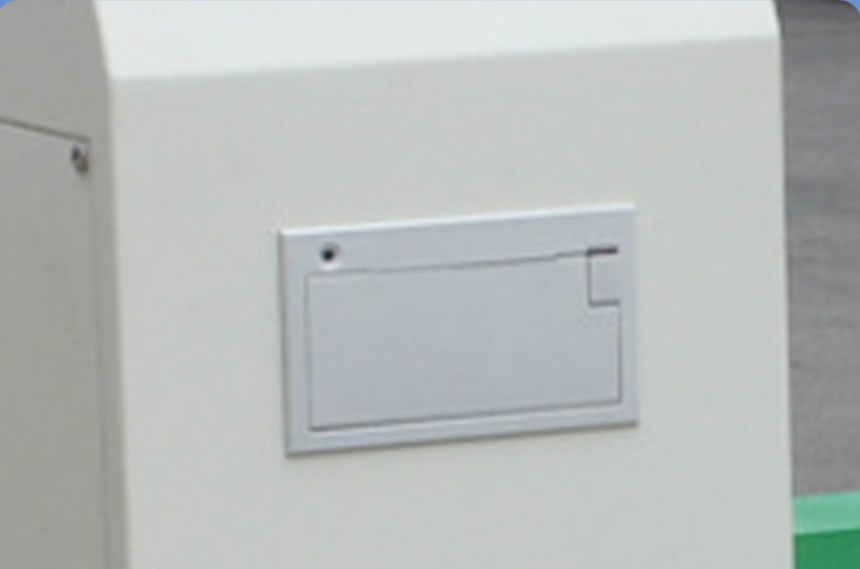

printer
Equipped with a micro printer, you can print test results directly
Application
suitable for paper tube with outer diameter of 200mm, also known as paper tube pressure testing machine
