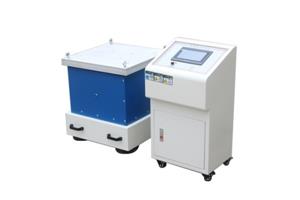

Electromagnetic Shaker
Electromagnetic vibration table is widely used in defense, aviation, communications, electronics, automobiles, home appliances, and other industries.This type of equipment is used to detect early faults, simulate actual working conditions and structural strength tests.
The product has wide application range, wide application surface, remarkable test effect and reliability.
Sine wave, frequency modulation, frequency sweep, time control.
Technology Parameter
Test load | 50kg |
vibration direction | vertical |
| table size(mm) | 500*500 |
| Amplitude(p-p) | 0-5mm (random, changes with frequency, adjustable) |
sweep frequency | 5-200HZ arbitrarily set (true standard sweep frequency) |
Maximum acceleration | 10g |
| Index fuction | frequency modulation, frequency sweep, time |
| precision | Frequency can be displayed to 0.1Hz, precision 0.1Hz |
Frequency doubling power (0.1Hz): | The number of 8 sections is multiplied by ① low to high frequency ② high to low frequency ③ low to high to low frequency/recyclable; |
| Logarithmic work (0.1Hz) | ① down to the upper frequency ② up to the lower frequency ③ down to the upper frequency and then to the lower frequency -3 kind mode logarithm/circulable; |
| Vibration waveform | sine wave |
| Time control | time can be set |
| power | 1.2kw |
