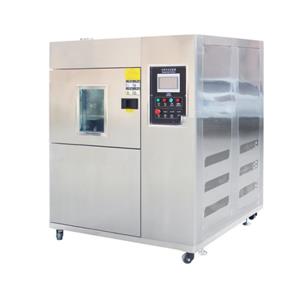

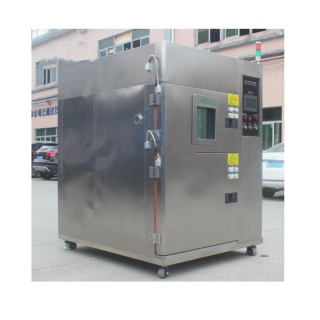

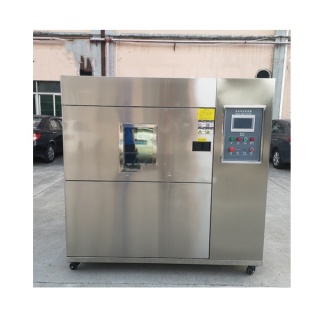

High and low temperature impact test chamber
Using color Chinese and English 10-inch LCD touch screen control interface, easy to operate.
The equipment area is divided into three parts: high temperature area, low temperature area and test area. The box of each area adopts unique heat breaking structure.
Shock mode Switch the air channel to import the temperature to the test area for a hot and cold shock test.
Technology parameter
| Heating time | RT·200℃ takes about 35min |
| Cooling time | RT·-70°C takes about 35min |
| Temperature recovery time/transition time | ≤5 minutes /≤10 seconds |
| Temperature control accuracy/distribution accuracy | Plus or minus 0.5 ℃ / plus or minus 2.0 ℃ |
| Thermal insulation material | High temperature resistant high density chloro-ethyl formate foam insulator material |
| System | P.I.D+S.S.R+ microcomputer balanced temperature control system |
| Cooling system | Semi-hermetic two-stage compressor (water-cooled)/ fully hermetic two-stage compressor (air-cooled) |
| Safety protection device | No fuse switch, compressor high and low pressure protection switch, refrigerant high pressure protection switch, fault warning system, electronic alarm |
| attachment | Viewing window (special optional type), two adjustable upper and lower layers, power test hole, caster, horizontal support |
| Power source | AC380V50Hz/60Hz |
| Weight (approximate) | 700kg 900kg 1200kg 1400kg 1900kg |
Feature
USB export
One-click button
Easy to operate
Touch control
Hd liquid crystal display
Support button operation and full color touch screen control (Korean LCD)
Cooling window
Install a cooling fan
Prevent mechanical overheating
Stainless steel inner box
The inner box is made of mirror steel plate
Adopts double wire silicone rubber sealing strip
Application
The cold and heat impact test box is divided into three boxes of cold and heat impact test box, two boxes of cold and heat impact test box, which are mainly used in metal, plastic, electronic batteries, headphones, mobile phones, rubber, LED, home appliances, scientific research, universities and other material industry testing equipment.
Headphones
Rubber products
metalwork
Household appliances
Electronic battery
Mobile phone communication
