HW-4026L Small Size Double Column Machine Center
It is mainly used for the processing of large mechanical parts and molds.
It can meet the numerical control processing requirements of many kinds
of precision parts such as basic large parts, plates, pan heads, molds etc.

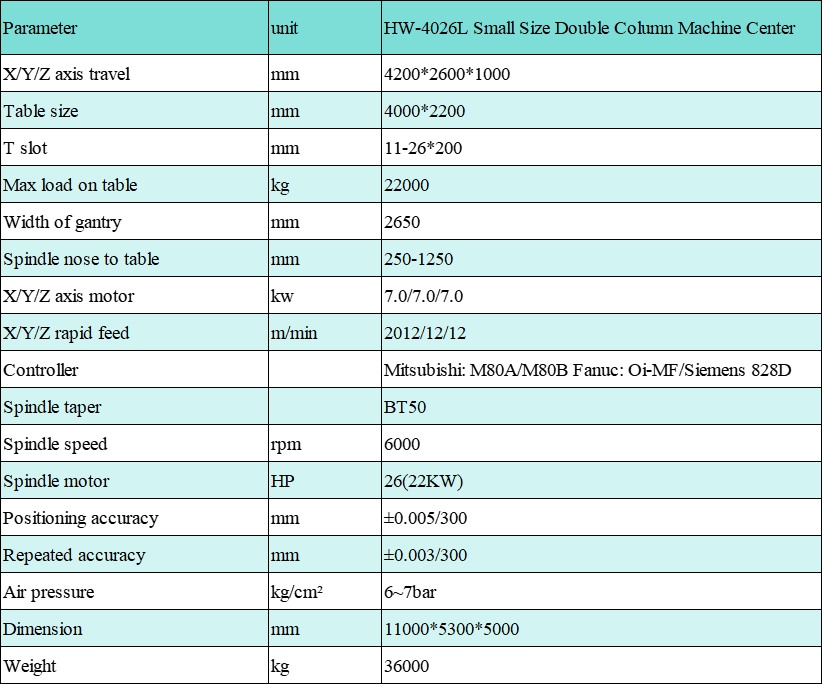

Specification
Feature
1, suitable for large automobile, home appliance mold, mold frame processing, bearing up to 25000KGF;
2, XY axis adopts heavy load roller linear guide rail, Z axis square slide rail, roller linear guide rail is optional;
3, long span inverted L-shaped Y-axis guide structure, effectively improve the rigidity of Y-axis structure and spindle machinability;
4, integrated casting column structure, effectively connect the beam and the base of the rigid transfer, greatly improve the machine cutting rigidity and accuracy retention (door width below 2000mm models).

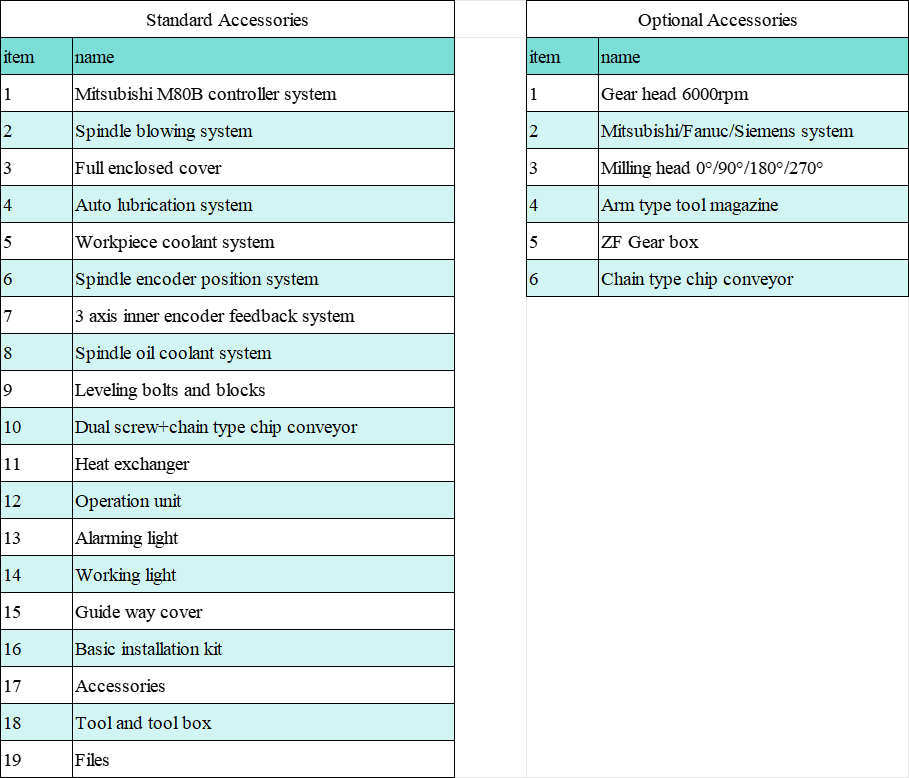

Configuration

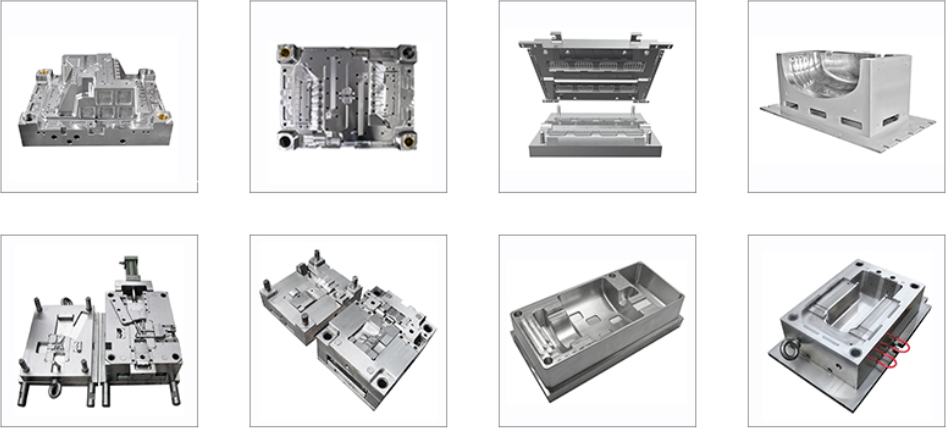

Application
It is widely used in processing of general mechanical parts, automobile molds, stamping molds, shipping molds, precision mechanical parts, large electronic product case and etc.
