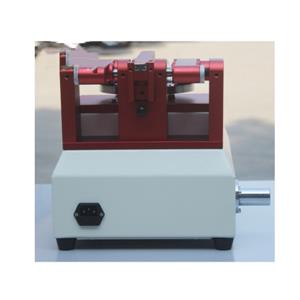

Taber Type Abrasion Tester
This machine is suitable for wear resistance test of leather, cloth, paint, paper, floor tile, plywood, glass, natural rubber, etc. The method is to cut the specimen with a standard cutter, wear it with a specified type of grinding wheel, and wear it with a certain weight, take out the specimen after the specified number of revolutions, and observe the condition of the specimen after grinding or the weight difference between the specimen before the test and the weight after the test.
Technology parameter
| Test piece | outer diameter 108mm, inner diameter 8mm |
| Load | 250g,500g,1000g; |
| Counter | electronic display 6 digits, automatic stop |
| Test disc speed | 60,70 RPM or specified |
| Machine size | (30x43x30) cm |
| Machine weight | about 30kg |
| Accessories | 1 test cutter, 1 wrench, 1 set of grinding wheel, 1 package of yarn paper |
| Coating | CS17 |
| Composite board | CS32, CS33 |
| Cloth | H18 H22, CS17 |
| Plastic | CS17, H18, H22(grinding wheel optional) |
| Power supply | AC220V, 50HZ |
Feature
Test station
Multiple working stations are optional
Equipped with toolbox
Instrument kit
Control panel
Intelligent digital display control panel
Application
First, at the maximum bend of the sole test, Pierce a number of specified holes, and then fix the two ends of the sole with the fixture, the fixture is fixed, and the other is active. The circular axis in the middle of the fixture is repeatedly raised during the test to bend the sole. After bending a certain number of times, the extension degree of the sole is checked with a magnifying glass.
cloth
Printing ink
paper
rubber
Bottom plate
Leather
