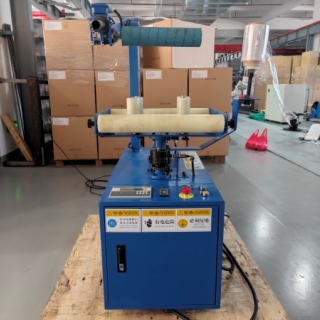

Desktop hose winding packaging machine
Introduction
Desktop hose winding packaging machine, mainly for small diameter, light weight hose winding packaging. It's a small
convenient winding packaging machine, widely used in the hose industry.
Wrapping requirements:
Before wrapping the packaged products, tie them with cable ties, wrap them eccentrically, and leave holes in the middle of the products.
The height can be adjusted according to the outer diameter of the packaged product.
The film frame adopts self-tensioning device for easy installation and removal.
The tightness of the packaging film is adjustable.
Packaging speed is adjustable.
Independent console operation, convenient and fast.
Safe, convenient, small footprint.
Technology Parameter
Name model | JSCD-GW200 |
Customer product | Rubber hose |
| Packing height | 100-360mm |
| Package outside diameter | 345-600mm |
Packing bore | 200-300mm |
Packaging material | Wrap film self-tensioning film frame |
| The way to break the film | Cut off the film manually |
| Idler speed | 2-8m/min (frequency conversion control) |
Idler bearing capacity | ≤50kg |
| Main color | / |
| Voltage/frequency | European 3 400 volts 50hz |
| Shipping package | Wooden case packing |
