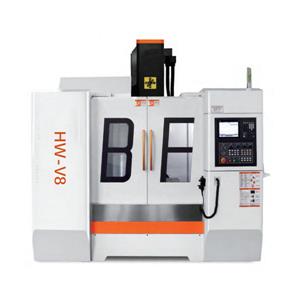

HW-V8 Vertical Machining Center
Direct BBT40-12000RPM, spindle high speed and high rigidity;
The structure of the whole machine is optimized by finite element analysis (FEM).
All parts are made of HT300 high grade castings, which are insulated for 48H in the mold
High temperature annealing stress relief treatment to ensure rigidity and accuracy stability.
Specification
●High rigidity moving parts with lightweight design for high speed and high precision parts processing, faster and more powerful parts processing machine.
●High strength gray casting iron machine body remains a high rigidity and stability even a long time processing.
●Special large span structure column and double-layerd base could bear higher inertia gravity and improve dynamic responsiveness of the whole machine.
●V1 vibration standard of direct drive spindle, compared with most popular V4 vibration standard, has smaller spindle vibration and better surface processing performance.
●Heavy loading ball linear guide in 3 axis, max rapid feed speed 48 m/min. The fastest tapping speed can reach 6000 rpm, the smallest tooth can attack M1.2.
Feature
Optional configuration
Spindle center discharge
Tool setting apparatus
4 axis rotary table
5 axis rotary table
Configuration
Application
High precision and high efficiency parts machining center series.
It can continuously complete drilling, milling, tapping, boring, reaming and other machining processes by once clamping, and can complete coordinate boring and fine machining of complicated parts accurately and efficiently. This series of machine is widely used for mass production of small and medium-sized cabinets, covers, panels, shells and plates in high-precision molds,automobiles,
machinery, instrumentation, light industrial textiles, electronic instruments, precision metal products, precision mold products and machinery manufacturing industries.
